Fiber optic gyroscope-Strapdown Inertial/Satellite Integrated Navigation System

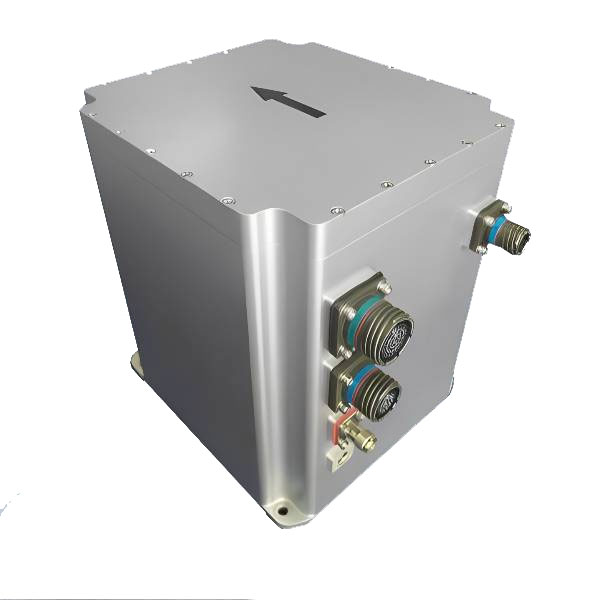

JIO-F100S Fiber optic gyroscope-Strapdown Inertial/Satellite Integrated Navigation System is composed of high-precision closed-loop fiber-optic gyroscope, quartz Flexible accelerometer and high-end GNSS receiving board, through multi-sensor fusion and guidance Realization of aerial calculation algorithm, providing high-precision navigation attitude,speed and position information to the outside world information to meet high-precision measurement and control requirements.
Model:JIO-F100S
Send Inquiry
Product Description
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
Our services
JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope
Product Features
- 0.8nmile/h navigation grade accuracy
- Multi-mode selection, vehicle mode/airplane mode
- Static initial alignment 3min / shaking base initial alignment 8min
- Fault self-check
- Rich interfaces, support RS232, RS422, CAN and other standard interfaces
- High reliability
- Multi-mode selection, vehicle mode/airplane mode
- Static initial alignment 3min / shaking base initial alignment 8min
- Fault self-check
- Rich interfaces, support RS232, RS422, CAN and other standard interfaces
- High reliability
Application scenarios
-Intelligent excavation system in mining area
- Baseline inertial navigation for large UAVs
- marine compass
- self-propelled gun orientation
- Vehicle positioning and orientation
- High precision mobile measurement
- High precision and stable platform
- Baseline inertial navigation for large UAVs
- marine compass
- self-propelled gun orientation
- Vehicle positioning and orientation
- High precision mobile measurement
- High precision and stable platform
Electrical Characteristics
- Power supply: 24~36V DC (typ.)
- Rated power: 30W (max)
- Rated power: 30W (max)
Fiber optic gyroscope-Strapdown Inertial/Satellite Integrated Navigation System Mechanical Dimensions
Technical parameter:
| Attributes | Parameter | Index |
| Position hold | Odometer Combo | 0.001D (D is mileage) |
| GNSS combination | 1.2m | |
| Pure inertia | 0.8nmile/h | |
| Attitude accuracy | Initial alignment | 0.003° |
|
Attitude hold (GNSS disabled, pure inertia) |
0.002°/10min（RMS） | |
| Transient power | ≤100W (<3s) | |
| Heading accuracy | self-seeking north | 0.05°×sec(Lati), where Lati means latitude (RMS) |
|
Heading hold (GNSS disabled, pure inertia) |
0.003°/10min（RMS） | |
| Speed accuracy |
Speed hold (GNSS disabled, pure inertia) |
0.3m/s/10min（RMS） |
|
Optical fiber Gyro |
Measuring range | ±400°/s |
| Zero bias stability | ≤0.01°/h | |
| Quartz Flexible Accelerometer | Measuring range | ±20g |
| Zero bias stability | ≤20µg(10s average) | |
| Communication Interface | RS232 |
1 channel (baud rate 9.6kbps~921.6kbps, default 115.2kbps Frequency up to 1000Hz, default 200Hz) |
|
|
RS422 |
6 channels (Baud rate 9.6kbps~921.6kbps, default 115.2Kbps Frequency up to 1000Hz, default 200Hz) |
| Structural properties | Size | 199 mm × 180 mm × 219.5 mm (L×W×H) |
| Weight | A single set of inertial navigation is not more than 8.0kg (optional for aviation applications is not more than 6.5kg) | |
| Use environment | Storage temperature | -40℃~65℃ |
| Relative humidity | ≤80% |
Application example
