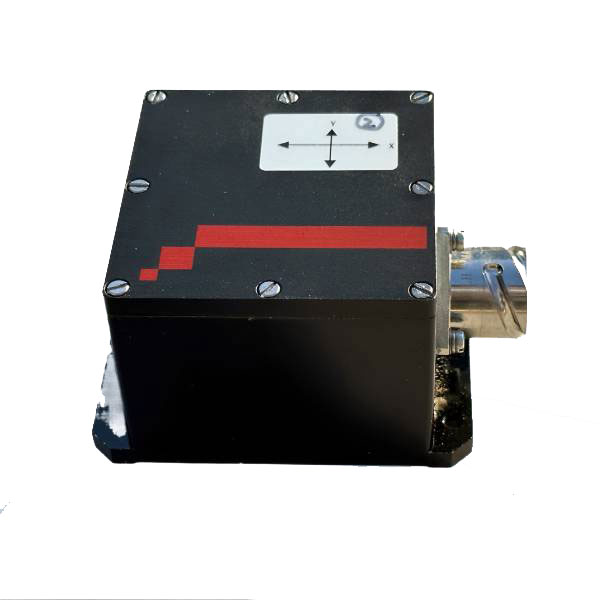

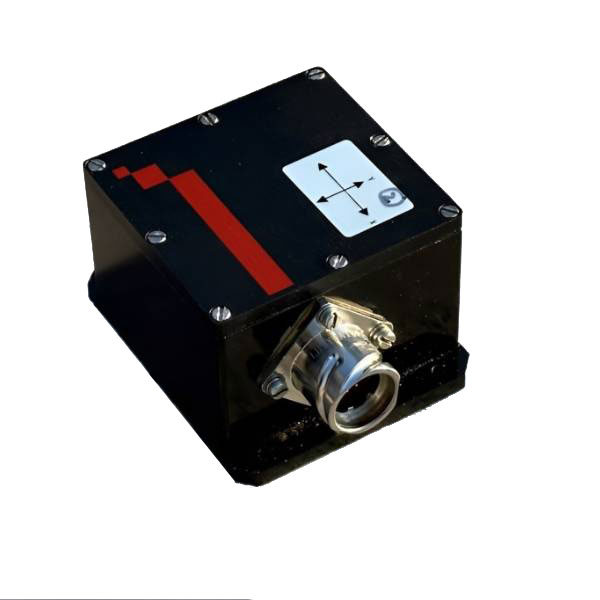

Fiber optic gyroscope-High precision inclination instrument
JIO-FOG001 Fiber optic gyroscope-High precision inclination instrument is a triaxial accelerometer based on micromechanical technology. The speedometer uses advanced signal processing algorithm technology to obtain high precision inclination information under complex working conditions. This product is based on the performance of the servo clinometer, using 4~20mA simulation output and digital output in two forms.
Model:JIO-FOG001
Send Inquiry
Product Description
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
Our services
JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope
Application scenarios
-The structure alignment (rolling machine, AC generator, etc.)
-A safety detection (crane, maritime platform)
-D horizontal measurement (road, railway track)
-Re angle measurement
-The positioning of shooting platform, radar antenna
-A safety detection (crane, maritime platform)
-D horizontal measurement (road, railway track)
-Re angle measurement
-The positioning of shooting platform, radar antenna
Product Features
-The performance of the servo inclination instrument, the inclination accuracy is better than 0.01 °
-Puramental range: -40 ~ 65 ℃
-The high anti -impact and vibration resistance capacity, vibration environmental performance is not disordered
-In IP65 sealed shell, suitable for harsh environments
-The interface type is rich, supporting standard interfaces such as RS422, current/voltage output
-He high reliability
-Puramental range: -40 ~ 65 ℃
-The high anti -impact and vibration resistance capacity, vibration environmental performance is not disordered
-In IP65 sealed shell, suitable for harsh environments
-The interface type is rich, supporting standard interfaces such as RS422, current/voltage output
-He high reliability
Electrical characteristics
-Delectrical power supply: 24V DC (typical value)
-Reze power: 1.5W (maximum value)
-The ripple: 100mv (peak value)
-Reze power: 1.5W (maximum value)
-The ripple: 100mv (peak value)
Fiber optic gyroscope-High precision inclination instrument Mechanical Dimensions
Technical parameters:
| Environmental parameters | |||
| Operating temperature |
-40℃ 至 +80℃ -40 ℃ to +80 ℃ |
||
| Storage temperature |
-55℃ 至 +85℃ -55 ℃ to +85 ℃ |
||
| Network | NF EN 61326 (Industry) | ||
| Shock | 5g/20Hz to 500Hz | ||
| Impact | 200g/6ms | ||
|
保护 Protection |
IP 65 | ||
| Universal parameter | |||
| Power supply | 240V DC, 35mA (max) (4-20mA version: 55mA (max) | ||
| Power consumption | 60mA (maximum value) (voltage output) / 100mA (maximum value) (current output) | ||
| Bandwidth | 2 ~ 10Hz determines according to needs | ||
| Output | ±5V or 4-20mA or RS422 serial digital output | ||
| Nonlinear error | <0.1% FS | ||
| Non-repeatability and hysteresis | <0.05% FS | ||
| Cross Axis Sensitivity | <0.005g/g | ||
| Deviation | 0.1% FS | ||
| Electronic noise | <2mVrms (0-1kHz) | ||
| Zero temperature drift | 0.01% FS/℃ | ||
| Sensitivity temperature drift | 0.01% signal/℃ | ||
| Selection guide | |||
| Range | Bandwidth | Product reference voltage output | Product reference current output |
| ±3° | 4Hz | 690 041 489 | 690 041 485 |
| ±5.75° | 4Hz | 690 041 419 | 690 041 415 |
| ±14.5° | 5Hz | 690 041 429 | 690 041 425 |
| ±30° | 6Hz | 690 041 439 | 690 041 435 |
| ±45° | 8Hz | 690 041 449 | 690 041 445 |
| ±90° | 12Hz | 690 041 459 | 690 041 455 |
| Choose custom | |||
|
Special bandwidth, special range and output signal, zero offset (unipolar output), linearity < 0.05% FS Integrated temperature sensor |
|||
