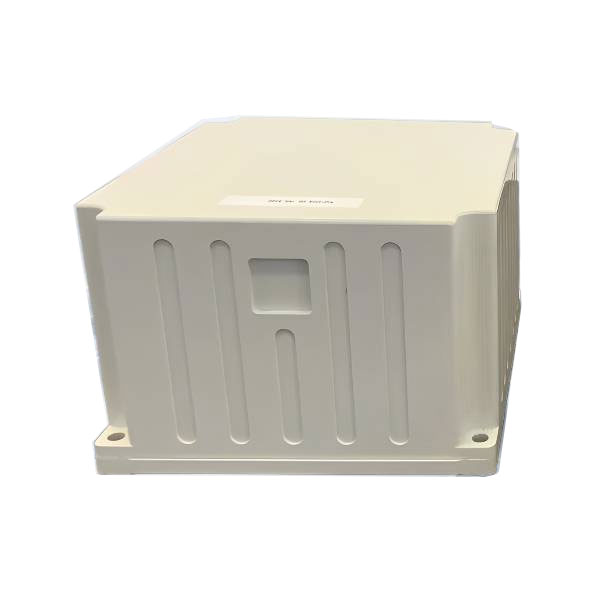

Fiber optic gyroscope-Accelerometer and GNSS Integrated Navigation System
The Fiber optic gyroscope-Accelerometer and GNSS Integrated Navigation System JIO-D300S is based on cost-effective closed-loop fiber optic gyroscope,accelerometer and high-end GNSS receiving board, through multi-sensor fusion and navigation solution algorithm implementation to meet the needs of medium and high-precision mobile measurement systems, large UAVs, etc.The application field requires accurate measurement of attitude, heading and position information.
Model:JIO-D300S
Send Inquiry
Product Description
The Fiber optic gyroscope-Accelerometer and GNSS Integrated Navigation System has a combined inertial/satellite navigation mode and a pure inertial mode.
The satellites that can be received by the GNSS receiver in the inertial/satellite integrated navigation mode satellite positioning information for combined navigation; output inertial solution position after losing signal speed attitude, with meter-level positioning accuracy in a short time.
After the pure inertia mode is started, it has the function of accurate attitude measurement and can output pitch rolling and heading, pure inertia can statically seek north.
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
The satellites that can be received by the GNSS receiver in the inertial/satellite integrated navigation mode satellite positioning information for combined navigation; output inertial solution position after losing signal speed attitude, with meter-level positioning accuracy in a short time.
After the pure inertia mode is started, it has the function of accurate attitude measurement and can output pitch rolling and heading, pure inertia can statically seek north.
JIOPTICS installation of fiber optic gyroscope to provide ease of integration flexibility, and our developers toolkit to rapid prototyping, not only meet the specification requirements, also provide high-quality performance meet the demand of end users.
Our services
JIOPTICS is a professional and efficient team. Provide OEM/ODM services for you, contact us to customize your exclusive fiber optical gyroscope
Product Features
- Position accuracy up to centimeter level
- Attitude measurement error better than 0.01°
- Operating temperature range: -40~60℃
- Vibration environment: 20~2000Hz, 3.03g
- Rich interface types, support RS232, RS422, CAN and other standard interfaces
- Mean time between failures up to 30000h
- Attitude measurement error better than 0.01°
- Operating temperature range: -40~60℃
- Vibration environment: 20~2000Hz, 3.03g
- Rich interface types, support RS232, RS422, CAN and other standard interfaces
- Mean time between failures up to 30000h
Electrical Characteristics
- Power supply: wide voltage input 12~36V
- Rated power: 24W (max)
- Rated power: 24W (max)
Mechanical Dimensions
Technical indicators
| Parameter | Attributes | Typical value | Unit |
| Position accuracy | Single point (RMS) | 1.2 | m |
| RTK（RMS） | 2cm+1ppm |
|
|
| Post-processing (RMS) | 1cm+1ppm |
|
|
| Loss of Lock Accuracy (CEP) | 2nm① |
|
|
| Heading (RMS) | Combined accuracy | 0.1② | º |
| Post-processing | 0.01 | º | |
| Loss of lock retention accuracy | 0.02① | º | |
| North-seeking accuracy | 0.2③ | ºSecL | |
| Attitude (RMS) | Combined accuracy | 0.01 | º |
| Post-processing | 0.006 | º | |
| Loss of lock retention accuracy | 0.02① | º | |
| Horizontal Velocity Accuracy (RMS) |
|
0.05 | m/s |
| Timing accuracy |
|
20 | ns |
| Data output frequency |
|
200④ | Hz |
| Gyro | Range | 300 | º/s |
| Zero bias stability | 0.02⑤ | º/h | |
| Scale factor | 50 | ppm | |
| Corner random walk | 0.005 | º/√hr | |
| Accelerometer | Range | 16 | g |
|
|
Zero bias stability | 50⑤ | μg |
| Scale factor | 50 | ppm | |
| Speed random walk | 0.01 | m/s/√hr |
Speed random walk
| Parameter | Attributes | Reference | Unit |
| Physical size | Size | 176.8×188.8×117 | mm3 |
| Weight | < 5 | kg | |
| Electrical Characteristics | Rated voltage | 12~36 | V |
| Rated power | 24 (steady state) | W | |
| Memory | Reserved |
|
|
| Environmental indicators | Operating temperature | -40~+60 | ℃ |
| Storage temperature | -45~+70 | ℃ | |
| Random vibration | 3.03 （20~2000Hz） | g | |
| MTBF | 30000 | h | |
| Interface features |
|
PPS, EVENT, RS232, RS422, CAN (optional) |
|
|
|
Network port (reserved), antenna port, wheel speed sensor port |
|
|
|
Note: ① The alignment is valid, and the lock is lost for 60 minutes; ②Vehicle conditions, need to be maneuvered; ③Two-position alignment, 15min alignment, the difference between the two positions is greater than 90 degrees; ④ Single output 200Hz; ⑤10s average. |
|||
