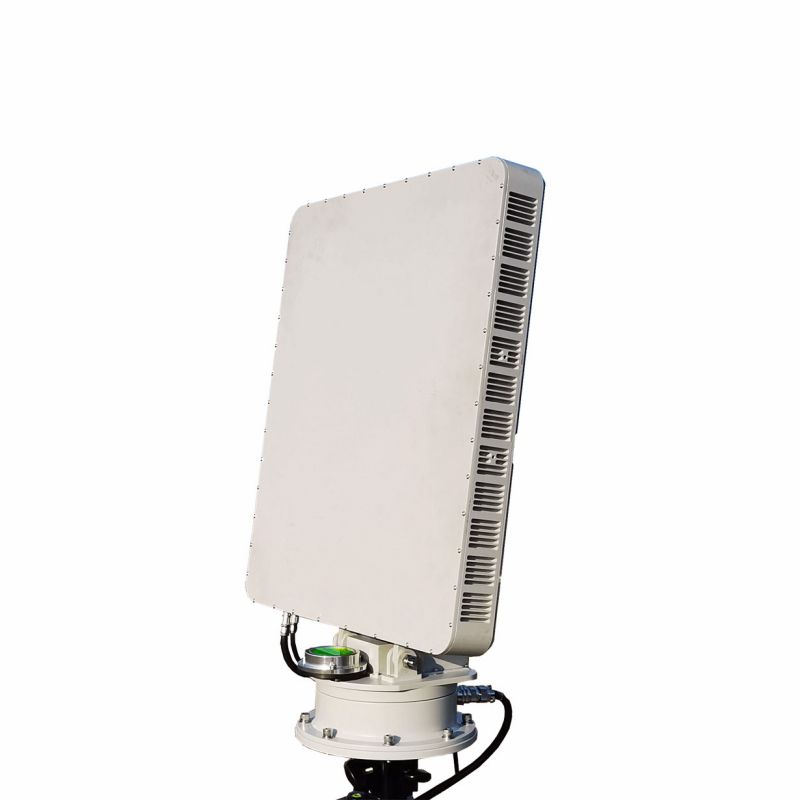

T10 Series Low Altitude UAV Surveillance Radar(AESA)

T10 Series Low Altitude UAV Surveillance Radar(AESA) is mainly used in low altitude and ground surveillance, the radar adopts digital beam forming technology, low equivalent omni-directional radiated power and high search data rate. The radar adopts adaptive clutter suppression technology and dense target pre-detection tracking technology, with extremely low clutter false alarm rate, and can automatically track and navigate more than 150 batches of targets and output high-precision position information.

Model:AESA

Send Inquiry

Product Description

T10 Series Low Altitude UAV Surveillance Radar(AESA) major function

1. Three coordinate system, azimuth coverage 360°, pitch coverage> 30°;
2. With the function of indicating the coordinate and speed information of the active target within the radar scanning
3. With the function of automatically indicating the target movement trajectory;
4. With the function of clutter filtration, the ground clutter, water clutter and meteorological clutter establish no effective track.

Product parameter

Item	Index
Model	STA- T10A	STA-T10B	STA-T10C	STA-T10D
Radar type	Phased array radar
Operating frequency	X-band
Operating frequency	10.4~10.6GH z
Number of frequency hopping	4
Pitch coverage range (pitch field angle)	-5~30°
Azimuth coverage range (horizontal field angle)	360°
Angle measurement accuracy: orientation	0.4° (RMS), pitch: 0.4° (RMS)
Detection height	800 m
Detection distance (phantom 4)	≥5Km	≥6Km	≥7Km	≥8Km
Detection distance (personnel)	≥8Km
Detection distance (vehicle)	≥10Km
Blind area	25m
Antenna speed	2s / rpm (180° / s)
Simultaneously tracking the number of targets	≥ 150 targets
ranging accuracy	5m (RMS)
Detection radial velocity range	1~100m / s
Environmental adaptability	-40~ + 55℃
Working humidity	> 60%
Communication interface	Gigabit Ethernet
Protection level	IP65
Power consumption	200W
Host size (excluding servo)	580 * 500 * 75mm
Weight	20 Kg
Wind resistance	It works normally in the weather below force 6 wind
