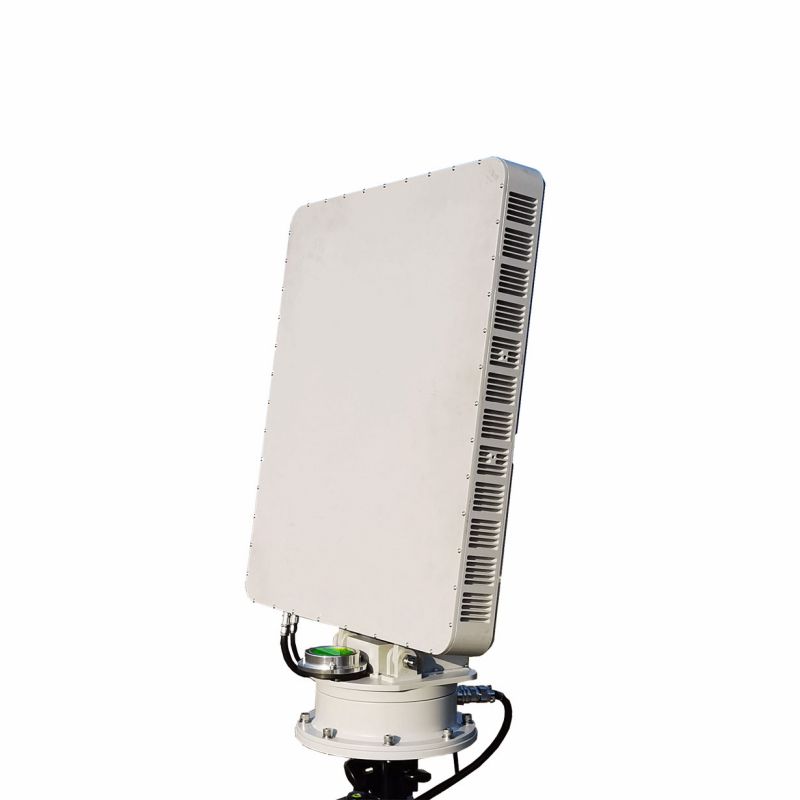

6km Low Altitude UAV Detection Radar(AESA)
6km Low Altitude UAV Detection Radar(AESA) is mainly used in low altitude and ground surveillance, the radar adopts digital beam forming technology, low equivalent omni-directional radiated power and high search data rate. The radar adopts adaptive clutter suppression technology and dense target pre-detection tracking technology, with extremely low clutter false alarm rate, and can automatically track and navigate more than 150 batches of targets and output high-precision position information.
Model:AESA
Send Inquiry
Product Description
6km Low Altitude UAV Detection Radar(AESA) major function
1. Three coordinate system, azimuth coverage 360°, pitch coverage> 30°;
2. With the function of indicating the coordinate and speed information of the active target within the radar scanning range;
3. With the function of automatically indicating the target movement trajectory;
4. With the function of clutter filtration, the ground clutter, water clutter and meteorological clutter establish no effective track.
2. With the function of indicating the coordinate and speed information of the active target within the radar scanning range;
3. With the function of automatically indicating the target movement trajectory;
4. With the function of clutter filtration, the ground clutter, water clutter and meteorological clutter establish no effective track.
Product parameter
| Item | Index |
| Model | STA-T10B |
| Radar type | Phased array radar |
| Operating frequency | X-band |
| Operating frequency | 10.4~10.6GH z |
| Number of frequency hopping | 4 |
| Pitch coverage range (pitch field angle) | -5~30° |
| Azimuth coverage range (horizontal field angle) | 360° |
| Angle measurement accuracy: orientation | 0.4° (RMS), pitch: 0.4° (RMS) |
| Detection height | 800 m |
| Detection distance (phantom 4) | ≥6Km |
| Detection distance (personnel) | ≥8Km |
| Detection distance (vehicle) | ≥10Km |
| Blind area | 25m |
| Antenna speed | 2s / rpm (180° / s) |
| Simultaneously tracking the number of targets | ≥ 150 targets |
| ranging accuracy | 5m (RMS) |
| Detection radial velocity range | 1~100m / s |
| Environmental adaptability | -40~ + 55℃ |
| Working humidity | > 60% |
| Communication interface | Gigabit Ethernet |
| Protection level | IP65 |
| Power consumption | 200W |
| Host size (excluding servo) | 580 * 500 * 75mm |
| Weight | 20 Kg |
| Wind resistance | It works normally in the weather below force 6 wind |
Applications for STA-T10B Radar(AESA)
Multi target detection and target tracking(≥150 target)
UAV detection and flight trajectory tracking
Phantom 4 UAV detection and flight trajectory tracking(MAX 8km)
