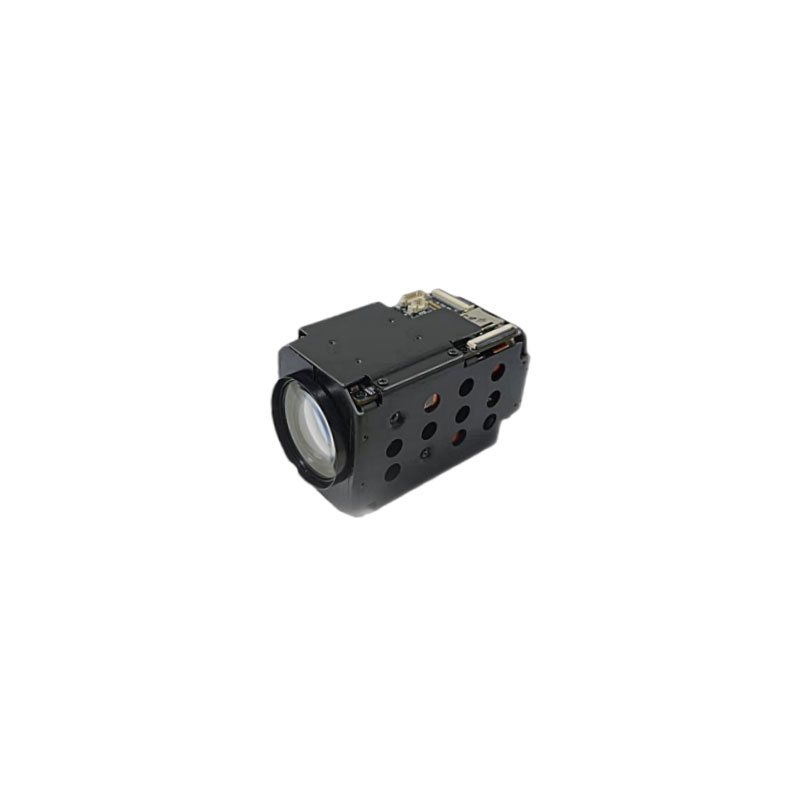

2MP 8X Super Starlight Zoom Camera HDMI+Network

2MP 8X Super Starlight Zoom Camera HDMI+Network Parameter ● 8 x optical magnification
● 2 million pixels 19201080P, P / N: 50 fps / 60 fps
● Super Starlight, 0.0005 Lux / F1.5 (color), 0.0001 Lux / F1.5 (black and white)
● support H.265/H.264，H.265+/H.264 + video compression algorithm
● Support electronic shake stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode
● Support for the 3D positioning function
● Support for 120dB optical width dynamics
● Support for SD card function, the maximum size is 256G
● Support for GB / 28181, onvif

Model:STA-0822-HG

Send Inquiry

Product Description

2MP 8X Super Starlight Zoom Camera HDMI+Network features

● 8 x optical magnification
● 2 million pixels 19201080P, P / N: 50 fps / 60 fps
● Super Starlight, 0.0005 Lux / F1.5 (color), 0.0001 Lux / F1.5 (black and white)
● support H.265/H.264，H.265+/H.264 + video compression algorithm
● Support electronic shake stabilization, electronic fog transmission, distortion correction, shadow correction, corridor mode
● Support for the 3D positioning function
● Support for 120dB optical width dynamics
● Support for SD card function, the maximum size is 256G
● Support for GB / 28181, onvif

HDMI, the output interface

●HDMI output

Network interface
● Industry standard: 36 PIN interface
● PIN TO PIN A kang
● Support a kang private agreement

Humanized installation hole position
● A variety of installation holes, more stable installation, more convenient
● Reserved camera installation hole position is easy to use

Multi-function serial port
● External connection of the lamp board
● External connection sensor
● External GPS

Functional features

● Support the power-off state memory function
● Support timing and event graphics and other functions
● Support for mobile / cross-border detection, area intrusion and other functions
● Support three-code flow technology, each code flow can be configured independently
● Supports 500 preset bits, 8 cruise scanning
● Supports timing task preset points, (pattern, cruise, left and right) scanning
● Support 1 audio input / output and 1 alarm input / output
● Support backlight compensation, strong light suppression, automatic electronic shutter, 3D noise reduction and other functions

Specification parameters

model	STA-0822-HG
	Movement parameters
Sensor type	1/1.8 Progressive Scan CMOS
Effective pixel	Two million
minimal illumination	Color: 0.0005 Lux @ (F1.5, AGC ON); black and white: 0.0001 Lux @ (F1.5, AGC ON)
noise-signal ratio	＞55dB
Day and night switching mode	Automatic ICR filter switch, automatic, color, black and white
	Lens parameters
focal distance	And f = 9-72mm, 8 x optical zoom and digital zoom of 16 x
iris diaphragm	Automatic / manual, maximum aperture: F1.5~F 3.4
shutter	1 / 25 seconds to 1 / 100,000 seconds; slow shutter support
Horizontal field of view angle	59-6.9 degrees (wide Angle-looking far)
Near camera distance	100mm-1500mm (wide Angle-far)
	encoded mode
Video compression standard	H.265 / H.264，H .265+/H.264+
H.265 Ending type	BaseLine Profile / Main Profile / High Profile
H.264 Ending type	BaseLine Profile / Main Profile / High Profile
Video compression code rate	64Kbps~16Mbps
Audio compression standard	G.711A /G.711U/G.726/AAC
Audio compression code rate	16Kbps(G.711)/ ( G.711U )/ (G.726)/(AAC)
	image parameter
Main code flow resolution	50Hz: 50fps (1920 × 1080,1280 × 720); 60Hz: 60fps (1920 × 1080,1280 × 720)；
Second code-stream resolution	Independent of the main code stream set 50Hz: 50 fps (720576,352288); 60Hz: 60 fps (720576,352288)
The third code-stream resolution	50Hz: 50fps(1280 × 720，720×576，352×288); 60Hz: 60fps(1280 × 720，720×576，352×288)
Image Settings	Brightness, contrast, saturation, sharpness, color, adjustable through the browser
Backlight compensation	Supported, and can have customizable areas
Strong light inhibition	Support, and the eclipse function
Exposure mode	Auto exposure / manual exposure / antidrag shadow / low light priority / highlight priority / aperture priority / shutter priority / lock mode
Focus mode	Automatic focus / manual focus / semi-automatic focus
zone focusing	support
Electronic fog	support
Electronic anti-shake	support
Day and night conversion	Automatic, manual, image algorithm, timing, serial port trigger
3D noise reduction	support
Picture superposition	Support BMP 24 bit image superposition, can be customized area
permeability	Automatic, and area selection
Region of interest (ROI)	Support three code flow, set 4 fixed areas
	Network function
memory function	Micro SD / SDHC / SDXC card (256G) disconnected local storage, NAS (NFS, SMB / CIFS support
Support agreement	TCP/IP,MTU ,HTTP,HTTPS,FTP,DHCP,D DNS,UPNP ,RTSP,RT M P,NTP,SMTP,PPPOE
API	Support ONVIF, G B 28181 protocol, support SDK and third-party platform access

	interface parameters
network interface	36pin FFC (including network port, RS485, RS232, SDHC, Alarm In / Out, Line In / Out, power supply)
External interface	HDMI
	general requirements
Operating temperature and humidity	-30℃ ~60℃, humidity is less than 95% (no condensation)
power suppl	DC12V±10% ，2A
power dissipation	2.5W Static (4.5 WMAX)
size	98.95260
weight	329g (with enclosure); 179.5g (without enclosure)
