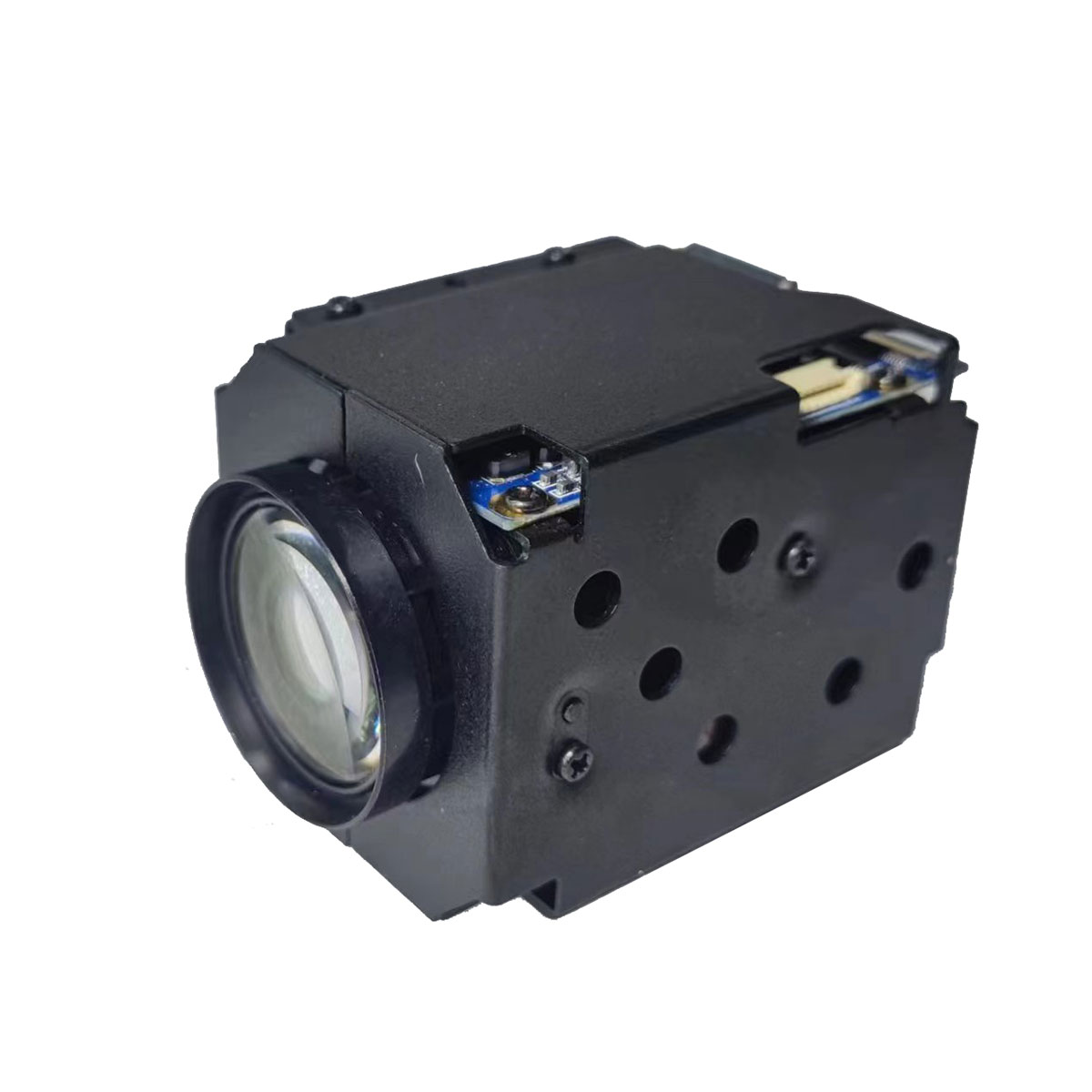

2MP 10X Starlight Zoom Camera Digital
2MP 10X Starlight Zoom Camera Digital Parameter
● 10x optical zoom, 32x digital zoom
● 30Pin Lvds connector, Pin to Pin Sony connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.7mm-47mm
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, CVBS
Model:STA-1023-DX
Send Inquiry
Product Description
2MP 10X Starlight Zoom Camera Digital features
● 10x optical zoom, 32x digital zoom
● 30Pin Lvds connector, Pin to Pin Sony connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.7mm-47mm
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, CVBS
● 30Pin Lvds connector, Pin to Pin Sony connector;
● 1080p/720p (50/25fps, 60fps/30fps)
● 4.7mm-47mm
● Digital Noise Reduction (2 D+ 3D)
● Privacy mask function
● Strong light suppression
● Motion Detection
● Fog Transparency
● Support VISCA, PeIco-D/P protocols
● Video Output: LVDS, CVBS
| model | STA-1023-DX |
|
|
Movement parameters |
| Sensor type | 1/2.8" Panasonic CMOS |
| Effective pixel | Two million |
| minimal illumination | Color: 0.02 Lux; black and white: 0.001 Lux |
| noise-signal ratio | ＞50dB |
| Day and night switching mode | Automatic ICR filter switch, automatic, color, black and white |
|
|
Lens parameters |
| focal distance | And f =4.7 – 47mm, 10 x optical changes and 32 x numbers |
| iris diaphragm | Maximum aperture: F 1.7 to F 3.1 |
| shutter | 1 / 1 seconds to 1 / 30,000 seconds; slow shutter support |
| Horizontal field of view angle | 58.3-7.1 degree (wide Angle-looking far) |
|
|
image parameter |
| resolution ratio |
50/25fps (1920 × 1080,1280 × 720); 60/30fps (1920 × 1080,1280 × 720)； |
| Focus mode | Automatic focus / manual focus / one-click automatic focus |
| Strong light inhibition | support |
| Privacy block | Support 8 regions |
| Mobile detection | Support 4 regions |
| 3D & 2D for noise reduction | support |
| Through the fog | support |
| Baud rate | 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 115200 |
| access protocol | VISCA / PeIco-D / PelcoP / Update |
| language | English / simplified Chinese / Traditional Chinese / Japanese |
| standard | NTSC / PAL |
|
|
interface parameters |
| video monitor 525 vidicon video out | LVDS , CVBS |
|
|
general requirements |
| Operating temperature and humidity | -10℃ ~50℃, humidity is less than 90% (no condensation) |
| power suppl | DC 9V -15V |
| size | 66*43.6*47mm |
| weight | 165g |
If there is any change in product design and specifications, real-time update cannot be guaranteed. Specification parameters and pictures are for reference only, and the details are subject to the physical object.
