2km Laser Range Finder Module
The LRF module has a single measurement mode only one measurement, continuous measurement mode, according to the selected sampling frequency return continuous results.
The measurement range is up to 1800M（Forest）
The sampling frequency is 1Hz
Measuring accuracy (0.5m)
TTL Serial communication UART (BautRate=600-19200)
All instructions are in hexadecimal format
JIOPTICS® Mini laser ranging module provides reliable range feedback and TTL serial output. Suitable for custom product integration, especially for thermal imaging, night vision, EVA, digital scope and other product integration. Welcome to buy 2km Laser Range Finder Module from us.
Model:M18X
Send Inquiry PDF DownLoad
Product Description
JIOPTICS® 2km Laser Range Finder Module Introduction

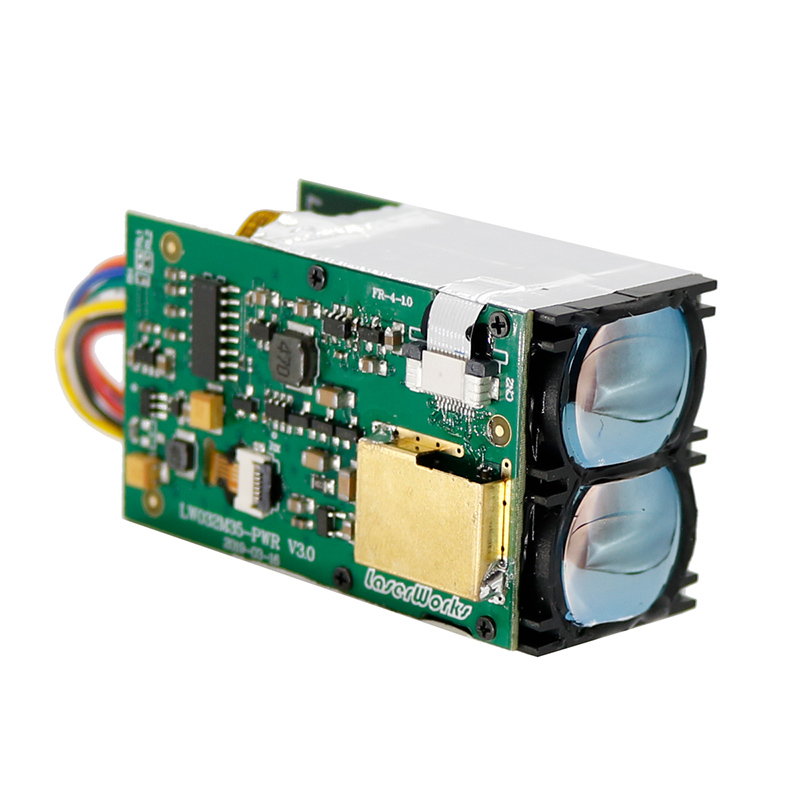

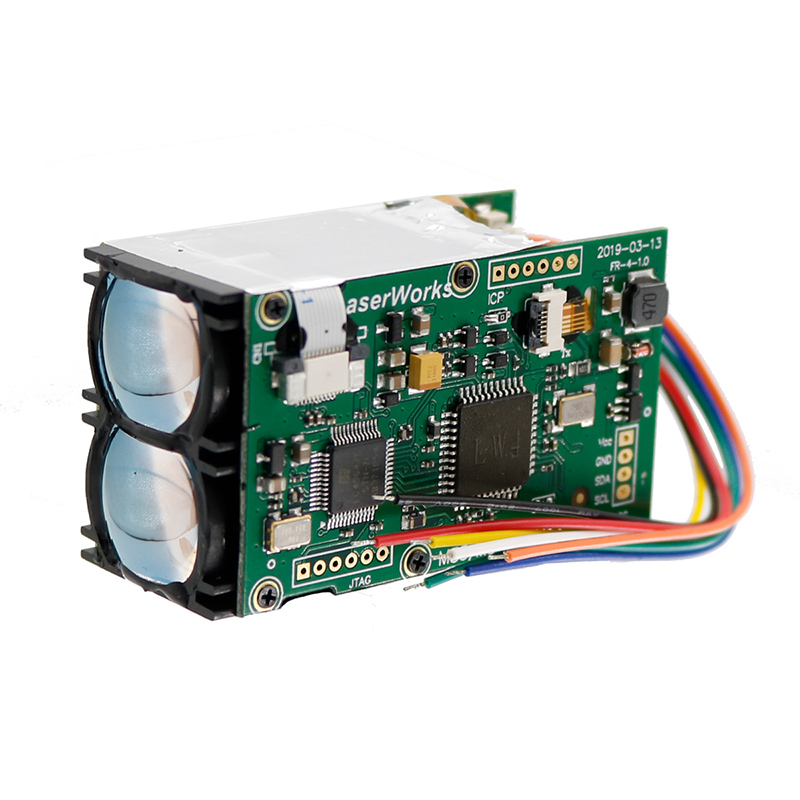

The M18X is a classic outdoor long-range laser rangefinder module. Measuring range up to 1800 meters, low power consumption, stable performance, up to industrial and military standards. The compact, eye safe, highly integrated laser rangefinder module is used for with multi-functional systems such as UAV pods, thermal imaging, ranging scopes and more.
Product Parameter (Specification)
|
Model Name |
M18X |
|
Measuring Distance |
5~2800m(Typ.) Forest : 5~1800m,Small target: 5~1200m |
|
Resolution |
0.1 mm |
|
Frequency |
1 Hz |
|
Wavelength |
905 nm |
|
Divergence |
5 mrad/2.5 mrad (customizable) |
|
Communication Interface |
Standard: TTL (UART) Option: USB (TTL-USB converter) |
|
Communication Signal |
TTL output |
|
Input Voltage |
3 ~ 5 V |
|
Operating Current |
80mA ~ 150mA |
|
Laser Safety |
Class 1 |
|
Power Consumption |
<1 mW |
|
Operating Temperature |
-20 ~ 50 °C |
|

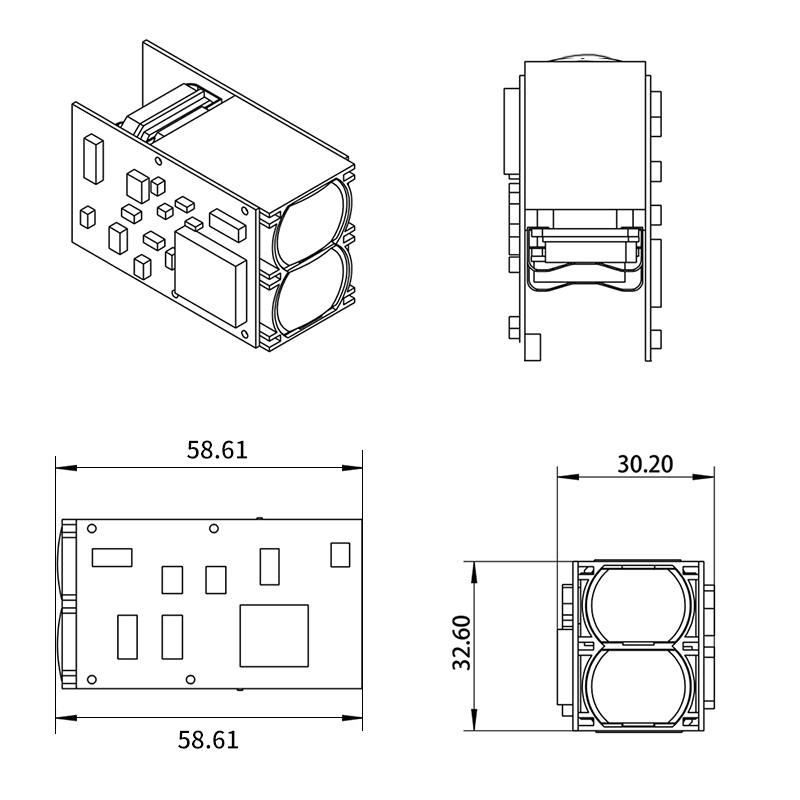

Dimension |
58.61 x 30.2 x 32.6 mm |
|
Weight |
≤35 g |
Product Feature And Application
M18X Long laser ranging module for target measurement performance
Typical targets (80% reflectance) measurement range ≥2.8km
Large white wall≥2km
Forest (15% reflectivity) measurement range ≥1.8km
Small target measurement range ≥1km
Typical targets (80% reflectance) measurement range ≥2.8km
Large white wall≥2km
Forest (15% reflectivity) measurement range ≥1.8km
Small target measurement range ≥1km
OEM ranging modules and custom solutions
The M18X is designed for system integrators looking for a convenient, powerful and compact laser ranging solution. It provides reliable performance in a wide range of applications.
It is very small, ultra-light, has low power consumption, and measures long distances. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
It is very small, ultra-light, has low power consumption, and measures long distances. It is suitable for handheld devices (thermal imaging), weapon mounting applications, portable systems and lightweight sensor suites and unmanned aerial vehicles or UGVs.
Product Details
