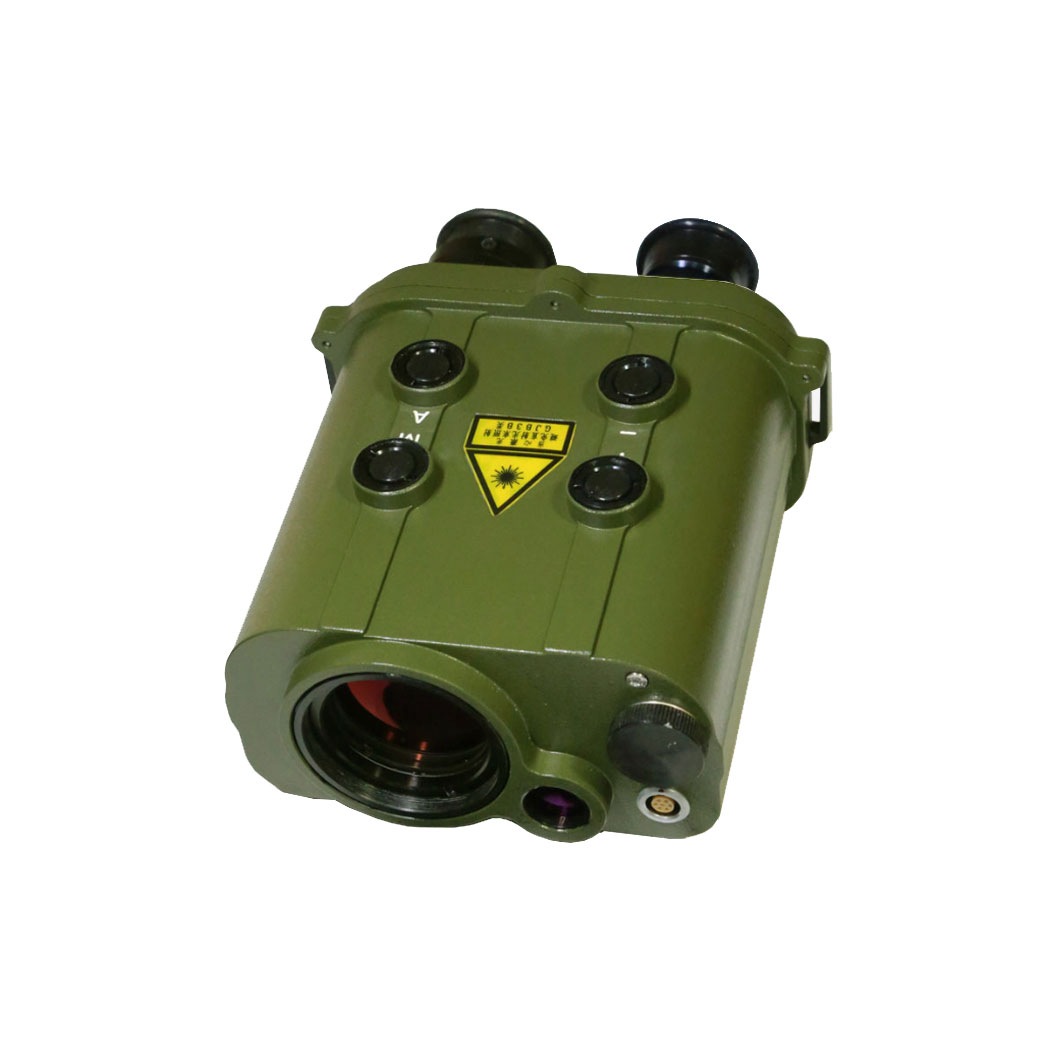

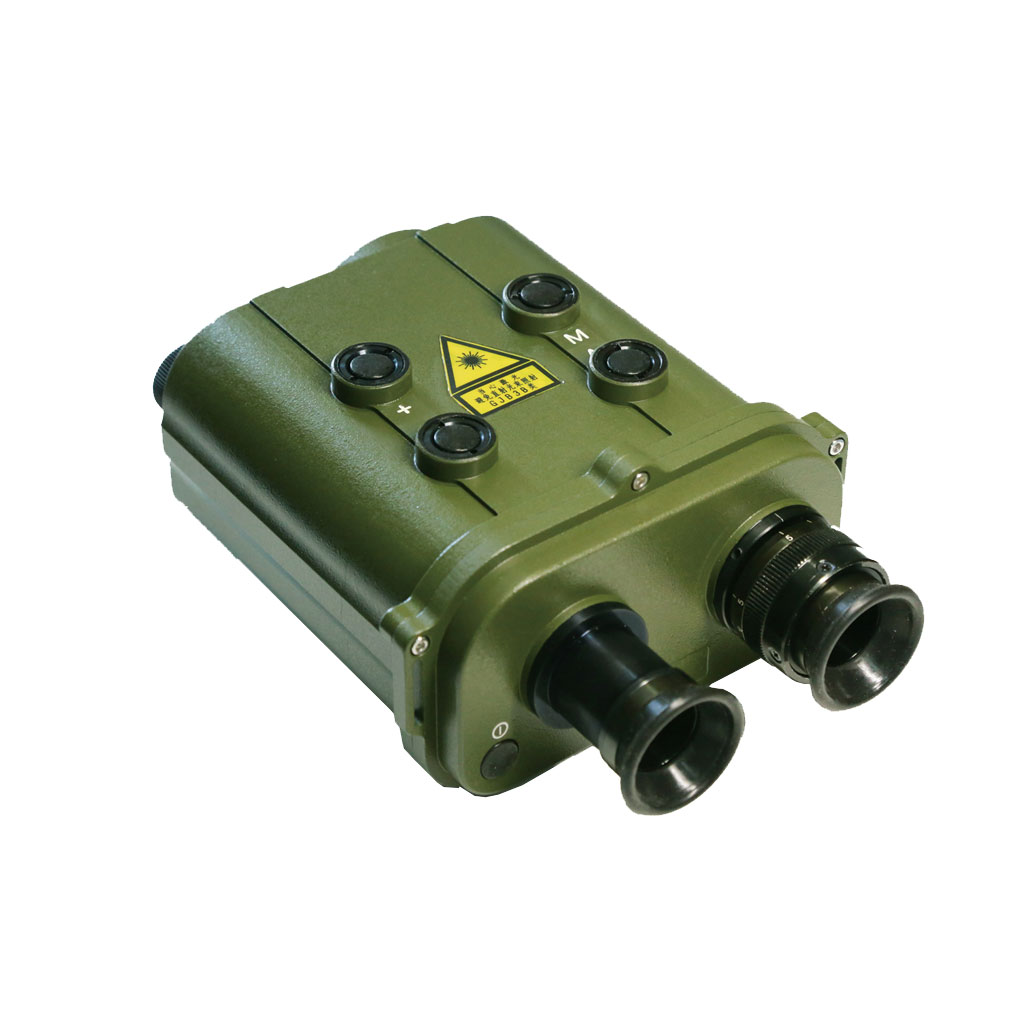

1064nm 15km Laser Rangefinder Binoculars
The 1064nm 15km Laser Rangefinder Binoculars is a new generation of military binocular laser rangefinder that integrates modern electronic, optical and laser technology to accurately measure the distance. It has the characteristics of small size, light weight, long measuring range, easy operation, small ranging error, good sealing performance and high reliability. It is suitable for military observation. Distance measurement in the fields of channel, river bed, post and telecommunications cable and power cable erection, oil field geology and mining, railway and road construction survey, and set up standard RS232 serial interface and mechanical connection, which can easily realize signal transmission, and match with Angle measuring instrument to achieve target orientation determination.
Model:STA-T15LB
Send Inquiry
Product Description
●Using Nd:YAG laser, wavelength 1.064 microns, effective range ≥ 15000 meters, measurement accuracy ± 1 meters;
●Remote measurement of targets without cooperation;
●With digital distance gating optional;
●Equipped with a night aiming crosshair backlight illuminator, even in a completely black environment can easily read;
●Ranging function: measuring linear distance, angle, horizontal distance, vertical distance, etc.
●External RS232 data interface;
●All metal structure seismic waterproof;
●Remote measurement of targets without cooperation;
●With digital distance gating optional;
●Equipped with a night aiming crosshair backlight illuminator, even in a completely black environment can easily read;
●Ranging function: measuring linear distance, angle, horizontal distance, vertical distance, etc.
●External RS232 data interface;
●All metal structure seismic waterproof;
1064nm 15km Laser Rangefinder Binoculars Main technical parameters
| Ranging performance | |
| Minimum ranging | ≤50m |
| Max ranging | 19999m |
| Effective range | ≥15000m |
| Range accuracy | ±1 m (30m ~ 1000m), ±2 m (1000m ~ 15000m) |
| Distance resolution | ≤30m |
| Repetition frequency | 6 times/min, continuous work; In case of emergency, 10 times/min, rest for 1 minute. |
| Distance strobe range | 10 m -6000 m continuously adjustable, and can be displayed in digital form in the eyepiece its precise data. |
| Quasi side rate | ≥98% |
| Ranging function | measuring linear distance, angle, horizontal distance, vertical distance, etc. |
| Optical properties of binoculars | |
| Magnification | 7X |
| Field of view | 7 degrees |
| Exit pupil diameter | 6 mm |
| Exit pupil distance | 20 mm |
| Resolution | 8 seconds |
| Usage performance | |
| Power | Use two rechargeable lithium batteries of model 18350 with a capacity of 800 mAh. After the battery is fully charged, it will measure distance at room temperature (25±5 ℃) for more than 600 times. During the ranging process, there is a "battery symbol" on the panel display to show the battery power. When the power is low, the battery should be charged immediately. But it can still range 20 times in an emergency. |
| Data interface | Standard RS232 serial interface |
| Environmental adaptability | |
| Operating temperature | -40~+60℃ |
| Storage temperature | -50~+70℃ |
| Maximum relative humidity | 95-98% |
| Structure | Fully sealed design, seismic and waterproof |
| Overall dimensions and weight | |
| Overall dimensions | 202×150×90 mm (Max) |
| Weight | ≤1.5kg |
