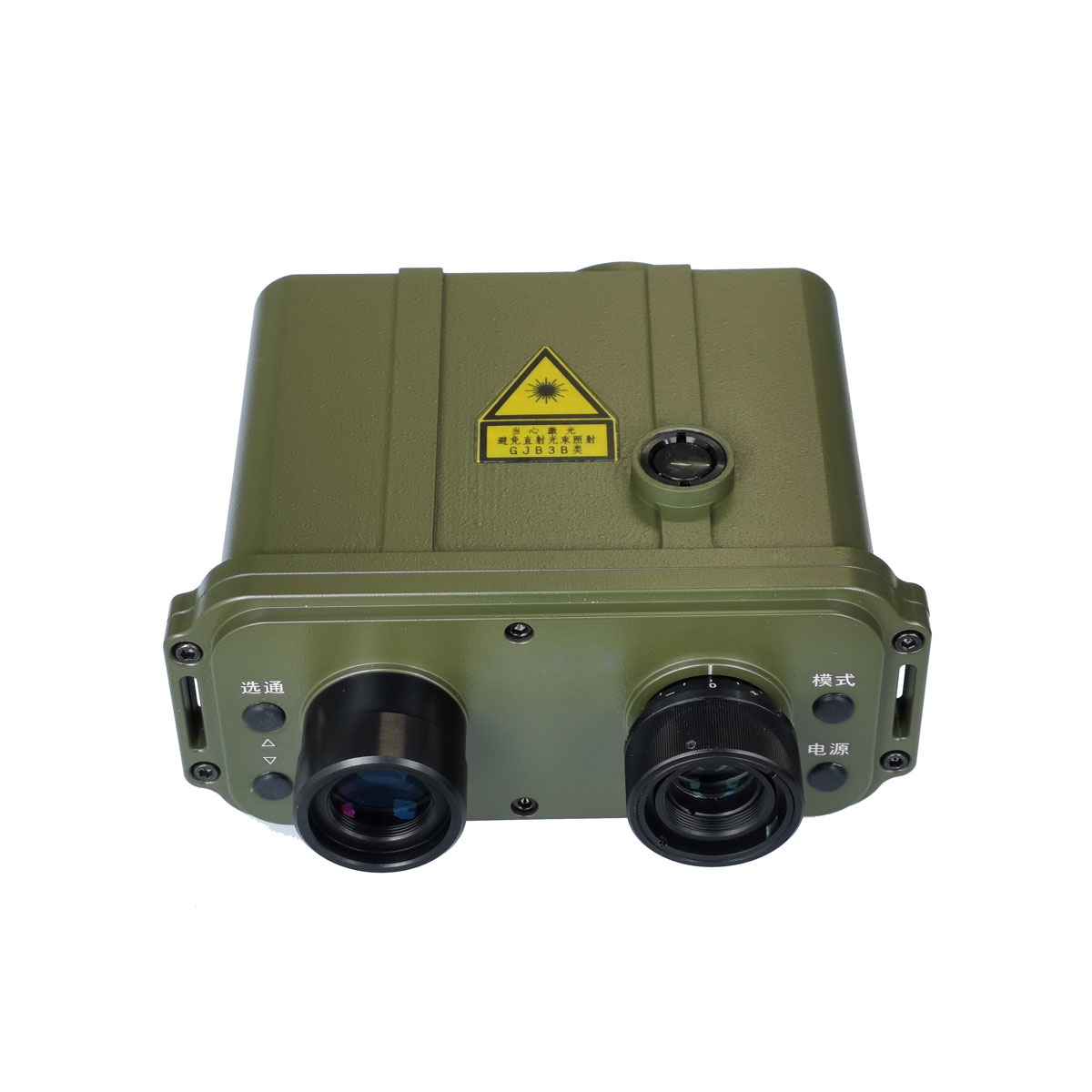

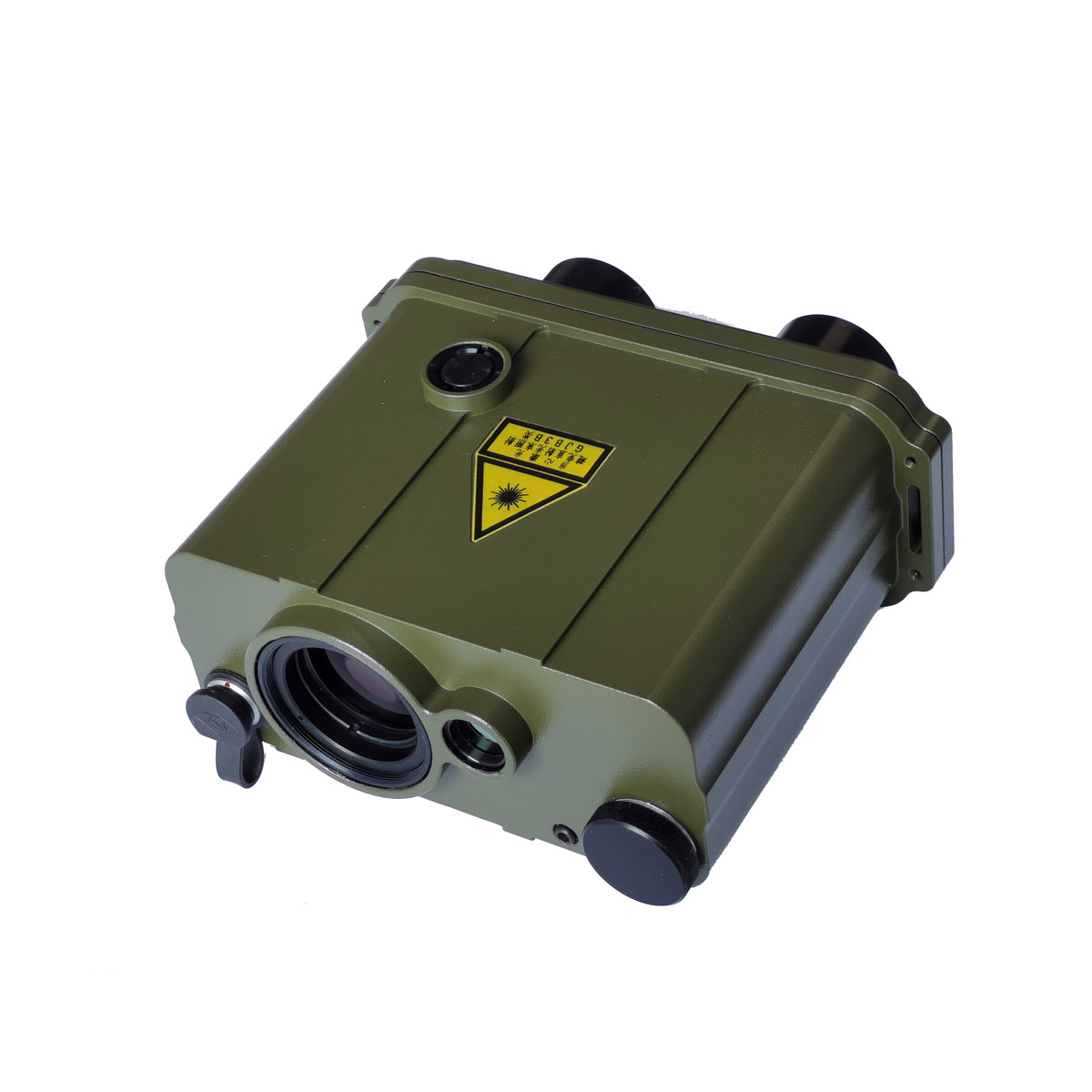

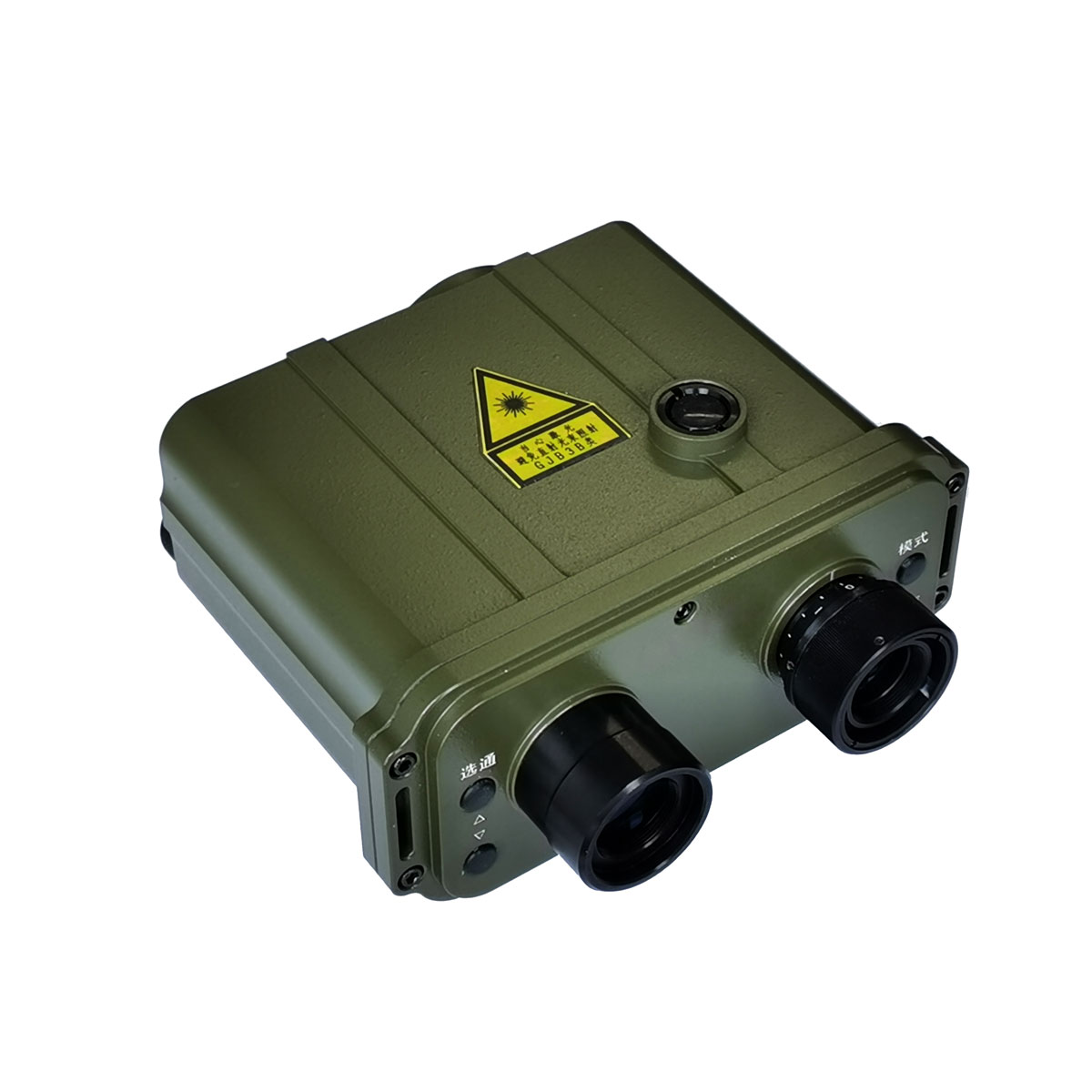

1064nm 10km Laser Rangefinder Binoculars
The handheld laser rangefinder is a new generation of M-ilitary binocular laser rangefinder that integrates modern electronic, optical and laser technology to accurately measure the distance. 1064nm 10km Laser Rangefinder Binoculars has the characteristics of small size, light weight, long measuring range, easy operation, small ranging error, good sealing performance and high reliability. It is suitable for military observation. Distance measurement in the fields of channel, river bed, post and telecommunications cable and power cable erection, oil field geology and mining, railway and road construction survey, and set up standard RS232 serial interface and mechanical connection, which can easily realize signal transmission, and match with Angle measuring instrument to achieve target orientation determination.
Model:STA-T10LB
Send Inquiry
Product Description
●Using Nd:YAG laser, wavelength 1.064 microns, effective range ≥ 10000 meters, measurement accuracy ± 0.5 meters;
●Remote measurement of targets without cooperation;
●With digital distance gating optional;
●Equipped with a night aiming crosshair backlight illuminator, even in a completely black environment can easily read;
●Ranging function: measuring linear distance, angle, horizontal distance, vertical distance, etc.
●Single laser can measure two targets;
●81 target data storage, access;
●Statistics of laser working number of times；
●External RS232 data interface;
●All metal structure seismic waterproof;
●Remote measurement of targets without cooperation;
●With digital distance gating optional;
●Equipped with a night aiming crosshair backlight illuminator, even in a completely black environment can easily read;
●Ranging function: measuring linear distance, angle, horizontal distance, vertical distance, etc.
●Single laser can measure two targets;
●81 target data storage, access;
●Statistics of laser working number of times；
●External RS232 data interface;
●All metal structure seismic waterproof;
1064nm 10km Laser Rangefinder Binoculars Main technical parameters
| Ranging performance | |
| Minimum ranging | ≤30m |
| Max ranging | 12000m |
| Effective range | ≥10000m |
| Ranging environment | ±0.5m |
| Distance resolution | Under standard visibility weather conditions, for square or circular plane targets with an area of not less than 3×4 meters |
| Repetition frequency | 10 times/minute, continuous work; 20 times/minute in case of emergency, test for 1 minute, rest for 1 minute, and can work continuously. |
| Distance strobe range | 30 -5000 meters can be adjusted continuously, and its accurate data can be displayed in digital form in the eyepiece. |
| Quasi side rate | ≥98% |
| Inclination | ±90 degrees, accuracy 0.1 degrees. |
| Optical properties of binoculars | |
| Magnification | 7X |
| Field of view | 6.5 degrees |
| Exit pupil diameter | 5 mm |
| Exit pupil distance | 20.3 mm |
| Resolution | 7.79 seconds |
| Usage performance | |
| Power | Use two 18350 1000mAh,3.7V rechargeable lithium batteries. After the batteries are fully charged, measure the distance at room temperature (25 5℃) for more than 1000 times. During the use of the rangefinder, there is a "battery symbol" on the panel display to show the battery power. When the power is low, charge the battery immediately. |
| Data interface | Standard RS232 serial interface |
| Environmental adaptability | |
| Operating temperature | -40~+60℃ |
| Storage temperature | -50~+70℃ |
| Maximum relative humidity | 95-98% |
| Structure | Fully sealed design, seismic and waterproof |
| Overall dimensions and weight | |
| Overall dimensions | 157×149×64mm (Max) |
| Weight | ≤1kg |
