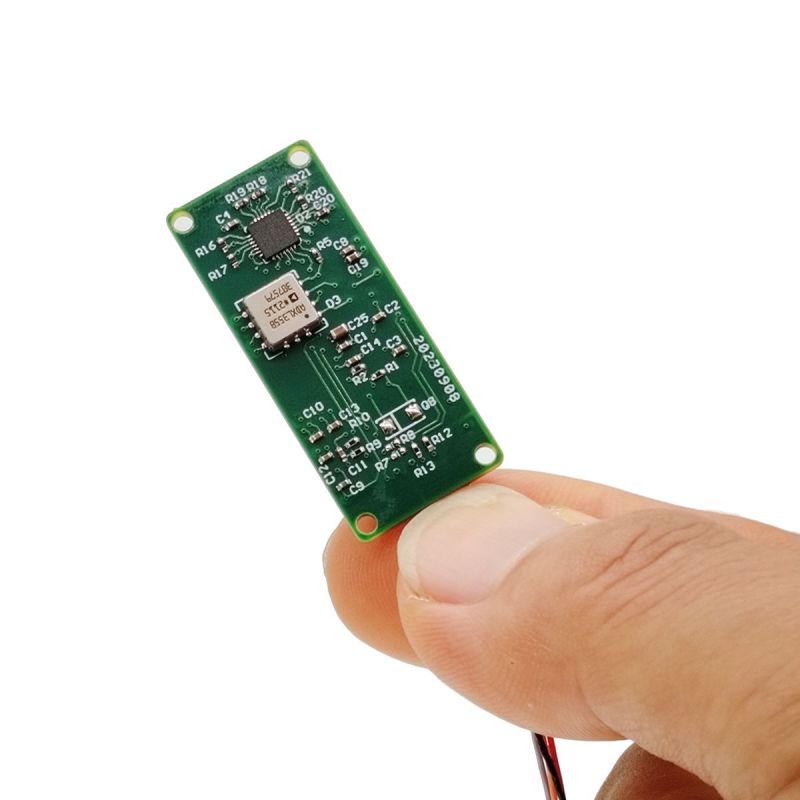

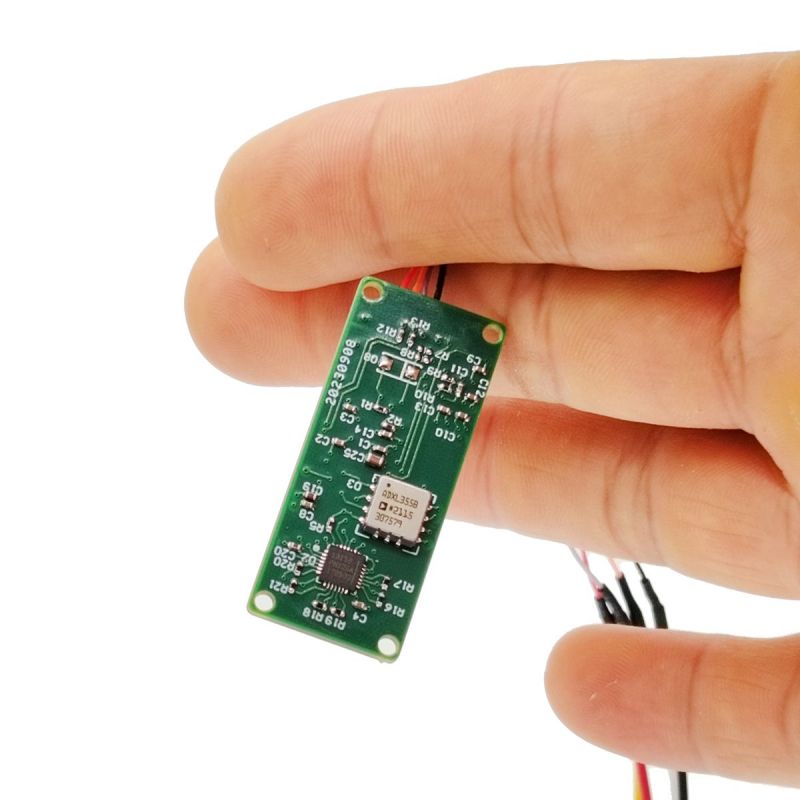

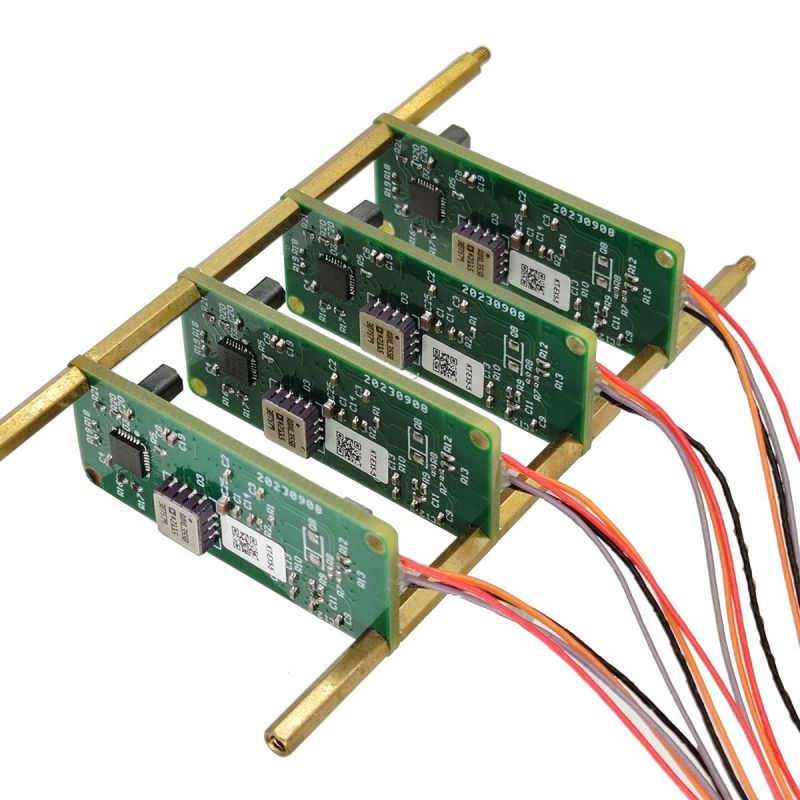

High Precision Military Electronic Compass

STA-EX5-5 high precision military electronic compass has the characteristics of low energy consumption, small size, easy weight and easy integration. Widely used in: aviation, aerospace, robotics, navigation, vehicle autonomous navigation, antenna positioning, aeromodelling orientation, handheld instrumentation and other fields.

Model:STA-EX5-5

Send Inquiry

Product Description

high precision military electronic compass Main technical parameters

Item			Index
Azimuthal angle	Measuring range		0° ~360°
	Static measurement accuracy	After spatial calibration of the magnetic field	≤0.5°@(-65° ≤Angle of inclination≤65°)
			≤0.2°@Horizontal
		After horizontal calibration	≤0.2°@Horizontal
	Resolution		0.01°
	Repeatability		0.05°
Angle of inclination	Measuring range	Pitch angle	-90° ~90°
		Roll angle	-180° ~180°
	Accuracy	Pitch angle	<0.1°@(-80° ~80°)
		Roll angle	<0.1°@(-65° ~65°)
	Resolution		0.01°
	Repeatability		0.05°
Magnetometer	Measuring range		±125uT
	Resolution		0.015uT
	Repeatability		±0.1uT
Accelerometer	Measuring range		±2g
	Resolution		0.2mg
	Repeatability		0.2mg
	Stability		0.2mg
Temperature sensor	Measuring range		-40℃—+85℃
	Accuracy		±5℃
Data update rate	Max 100Hz

Electrical performance

Model	STA-EX5-5	STA-EX5-5-A
Supply voltage	DC3.6V~20V	DC3.6V~20V
Working current	≤12mA（TTL）	≤12mA（TTL）
Working current	≤16mA（ RS232）	≤16mA（ RS232）
Sleep mode	<300uA（TTL）	<300uA（TTL）
Communication interface	TTL /RS232	TTL /RS232
Baud rate	300~921600	300~921600
Operating temperature	-40℃~85℃	-40℃~85℃
Storage temperature	-40℃~85℃	-40℃~85℃
Size	17x40x13mm	17x40x13mm
Weight	7g	7g
Connector	Flying line	A1251WR-6P
