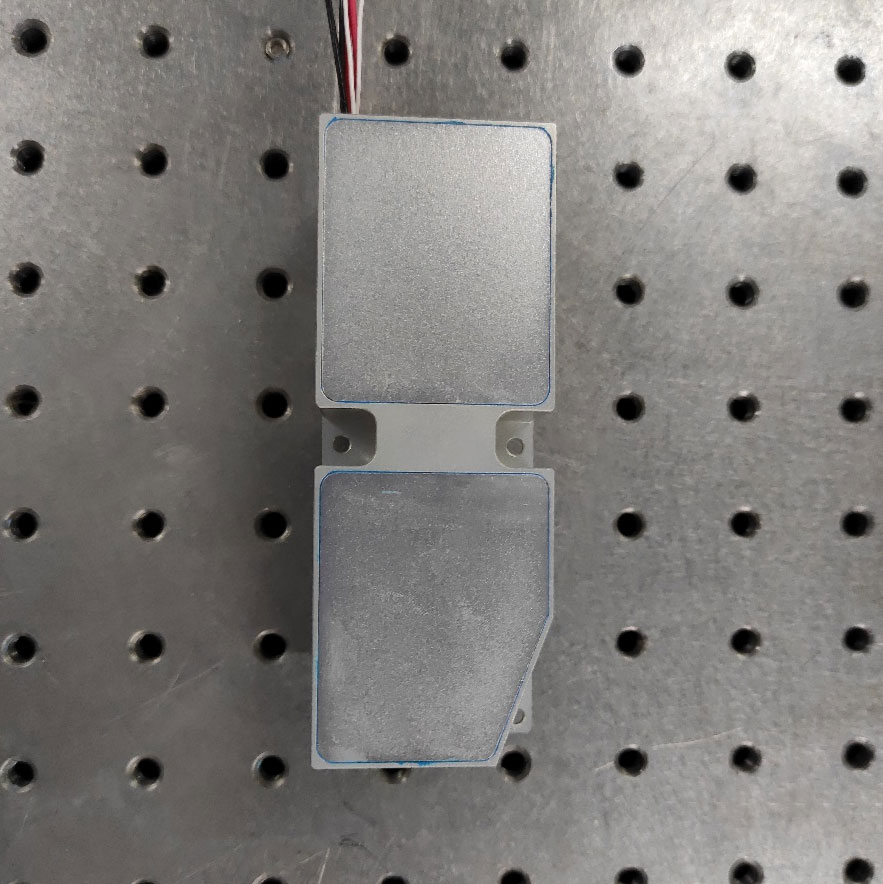

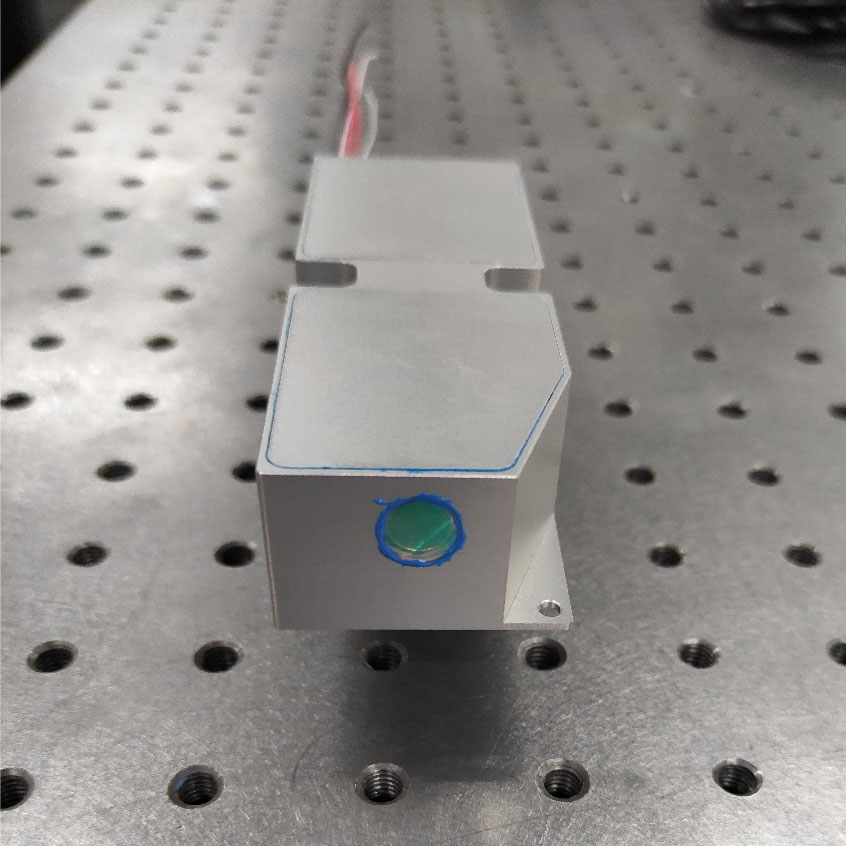

1570nm OPO Laser 10mJ 20Hz
The human eye safety miniature 1570nm OPO Laser 10mJ 20Hz has the characteristics of small size, compact structure, low threshold, high conversion and repetition rate, large pulse capacity and simple structure, which is very suitable for laser LIDAR, laser ranging and target recognition.
Peak wavelength: 1570nm
Mono-pulse energy: 10mJ
Operating frequency: 20Hz
Operating temperature: -40℃~+55℃
Send Inquiry
Product Description
1570nm OPO Laser 10mJ 20Hz Technical parameter
|
Wavelength |
1.57um |
|
Peak power |
≥1MW |
|
Pulse Repetition Rate |
≤20Hz |
|
Beam Divergence |
≤10mrad |
|
Continuous operating time |
≥5min（when operating with 10Hz, it can continuous operates for 30mins） |
|
Operating Temperature |
-40℃～55℃ |
|
Storage Temperature |
-45℃～65℃ |
|
Vibration |
It meets the national standard-GJB5849-2006 It can be applied on vehicle/Vessel-mounted situation |
|
Dimension |
≤110*20*25mm(cooling fin is not included) |
|
Weight |
≤135g（cooling fin is not included） |
OEM/ODM 1570nm lasers
Jioptics can customize various energy of 1570nm OPO laser for you
size
Pin definition
|
NO. |
Pin. |
Definition |
Note. |
|
1 |
LD+ |
LD power+, yellow |
|
|
2 |
LD- |
LD power -, grey |
|
|
3 |
TEC+ |
TEC power+, red |
|
|
4 |
TEC- |
TEC power -, black |
|
|
5 |
T1 |
Thermistor1, blue |
Thermistor Type#: MFB103-3380(1%) |
|
6 |
T2 |
Thermistor2, blue |
