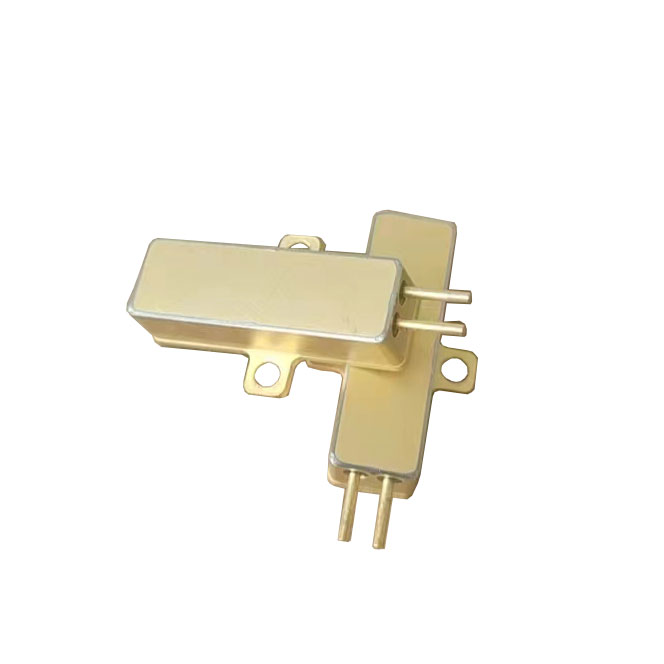

1535nm 100μJ 10Hz Er Glass Laser
Jiotics 1535nm 100μJ 10Hz Er Glass Laser, with large output energy, small volume, stable performance and other characteristics, is widely used in laser rangefinder, weather radar, remote sensing, 3D laser imaging and other fields.
Peak wavelength: 1535±5nm
Mono-pulse energy: 100μJ
Operating frequency: 10Hz
Operating temperature: -40°C~+65°C
Send Inquiry
Product Description
1535nm 100μJ 10Hz Er Glass Laser OPTICAL AND ELECTRICAL SPECIFICATIONS
|
Wavelength(nm) |
1535 |
|
Pulseenergy(μJ) |
100 |
|
Pulsewidth(ns) |
≤5 |
|
Repetitionrate(Hz) |
10 |
|
Operatingcurrent(A) |
8 |
|
Beamprofile |
TEM00 |
|
Weight(g) |
7 |
|
Dimensions(W×H×L,mm) |
25x8x7 |
|
Operationtemperature(℃) |
-40~65 |
|
Storagetemperature(℃) |
-55~80 |
|
Pin Descriptions |
|
|
Pin |
Function |
|
1 |
Laser + |
|
2 |
Laser - |
Size
Jiotics 1535nm Microchip Q-Switched Lasers provides you with OEM/ODM services.
Typical Pluse
