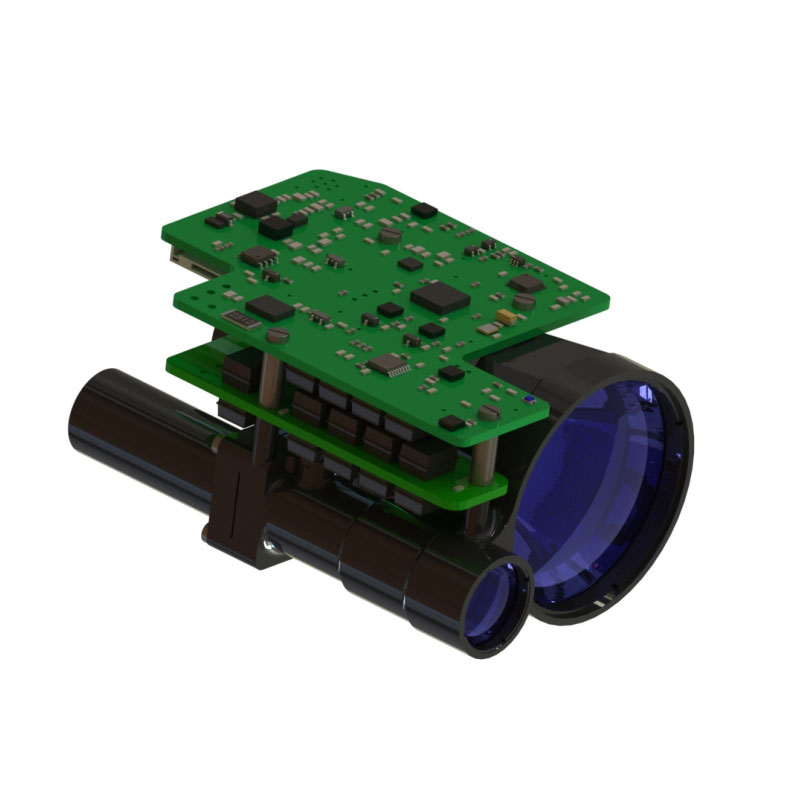

10km Laser Rangefinder Module

STA-D1013X 10km Laser Rangefinder Module adopts the 1535nm erbium glass laser module independently developed by Jioptics, which has the characteristics of low power consumption, compact structure, high precision, long measuring distance and human eye safety.

Send Inquiry

Product Description

Maximum measuring range: NATO target≥10000m ; Typical target≥13000m
Ranging accuracy ±1m
Measurement accuracy ≥ 98%
Weight ≤165g

10km Laser Rangefinder Module features

1. Integrated structural design, shock and vibration resistance, high reliability, strong environmental adaptability;
2. 1535nm pumped Q-switched erbium glass laser integrated structure design and end-face multi-point sealing installation mode, strong anti-misadjustment ability, durable, long working life and human eye safety;
3. The internal interface of the circuit is all welded wire direct connection process, solid and reliable, which can avoid short circuit or poor contact caused by loose connector, oxidation and water vapor, and improve product reliability and life.

Product performance index FOR STA-D1013X Laser Rangefinder Module

Item	Index
Model	STA-D1013X
Operating wavelength	1535nm ±10nm
Ranging range	50m-13000m
	13000m	Typical Large target, visibility ≥ 25km
	10000m	Visibility ≥ 25km, target with 0.3 reflectivity for 2.3m × 2.3m vehicles
Humidity	≤ 60%
Ranging accuracy	±1m
Accuracy rate	≥98%
Range resolution	≤50m
Divergence angle	≤0.3mrad
Ranging frequency	Once,1hz,5hz,10hz
Size	≤89mm×62.5mm×46mm
Voltage	10V～14V
Working power consumption	Average power consumption: ≤ 5W
Standby power consumption	≤1.5W
Working temperature	-40℃～+60℃
Storage temperature	-55℃～+70℃
Weight	≤165g

Structure installation interface FOR STA-D1013X Rangefinder Module

Product function FOR STA-D1013X measuring sensor

●Laser ranging function;
●Power-on self-detection function;
●First and last target selection function;
●Range gating function;
●Set automatic distance interval function;
●Accumulate laser emission times function;
●Power polarity reverse protection.

Electrical Interface

Electrical interface requirements are as follows:
●Power supply voltage: 10V~14V;
●Average power consumption: ≤5W;
●Standby power consumption: ≤1.5W;
●The cross linking test between the upper computer end and the A1257H-10P connector of the rangefinder end is realized through the A1257H-10P connector. Distance finder end power supply and communication port pin definitions are shown in the following table.

Pin definition of power supply and communication port at rangefinder end

Pin number	Number	Transmission direction	Notes
P-1	GND	——	Communication ground wire
P-2	RS422_RX_N	I	Rangefinder receiver -
P-3	RS422_RX_P	I	Rangefinder receiver +
P-4	RS422_TX_N	O	Rangefinder sender -
P-5	RS422_TX_P	O	Rangefinder sender +
P-6	NC	——	standby
P-7	NC	——	standby
P-8	NC	——	standby
P-9	P-	——	Power supply, ground
P-10	P+	——	Power supply, 10V~14V
